10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial

Name: 104 inch AUO 800X600 LVDS TFT LCD Display 400cdm2 for Industrial
Brand: AISON
Price: 90 USD

Buy cheap 10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial product

Brand Name : AISON

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : 90~100usd/pc

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 300k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

Name : 10.4 inch AUO Display G104STN01.0

Resolution : 800X600

Outline dimension : 243(W)×184(H)×7(D) mm

Active area : 211.2(W)×158.4(H) mm

Interface : LVDS 20PIN

Viewing angle : 85/85/85/85

Brightness : 400cd/m2

Display mode : TFT,Normally White

Viewing Direction : 6 o'clock

Operating temperatures : -30 ~ 80 °C

Storage temperatures : -30 ~ 80 °C

Contact Now

10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial

General Description

This specification applies to the Color Active Matrix Liquid Crystal Display G104STN01.0

composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system.

The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.2M (RGB

8-bits) or 262k colors (RGB 6-bits).

LED driving board for backlight unit is included in G104STN01.0 and the LED unit is replaceable.

All input signals are LVDS interface and compatible with G104SN02 V2.

G104STN01.0 designed with wide viewing angle; wide temperature and long life LED backlight is

well suited for industial applications.

G104STN01.0 is a RoHS product.

G104STN01.0 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features,it is recommend that this model be applied to Industrial etc.

General Data

Model Name	AUO 10.4 Inch TFT Display
Resolution	800x600
Model Size (WHT)	243(W)×184(H)×7(D) mm
Display Area (W*H)	211.2(W)×158.4(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	6 o'clcok
Brightness	400 cd/m2
Pin number	20 pin
Contrast Ratio	700:1
Operating temperatures	-30 ~ 80 °C
Storage temperatures	-30 ~ 80 °C

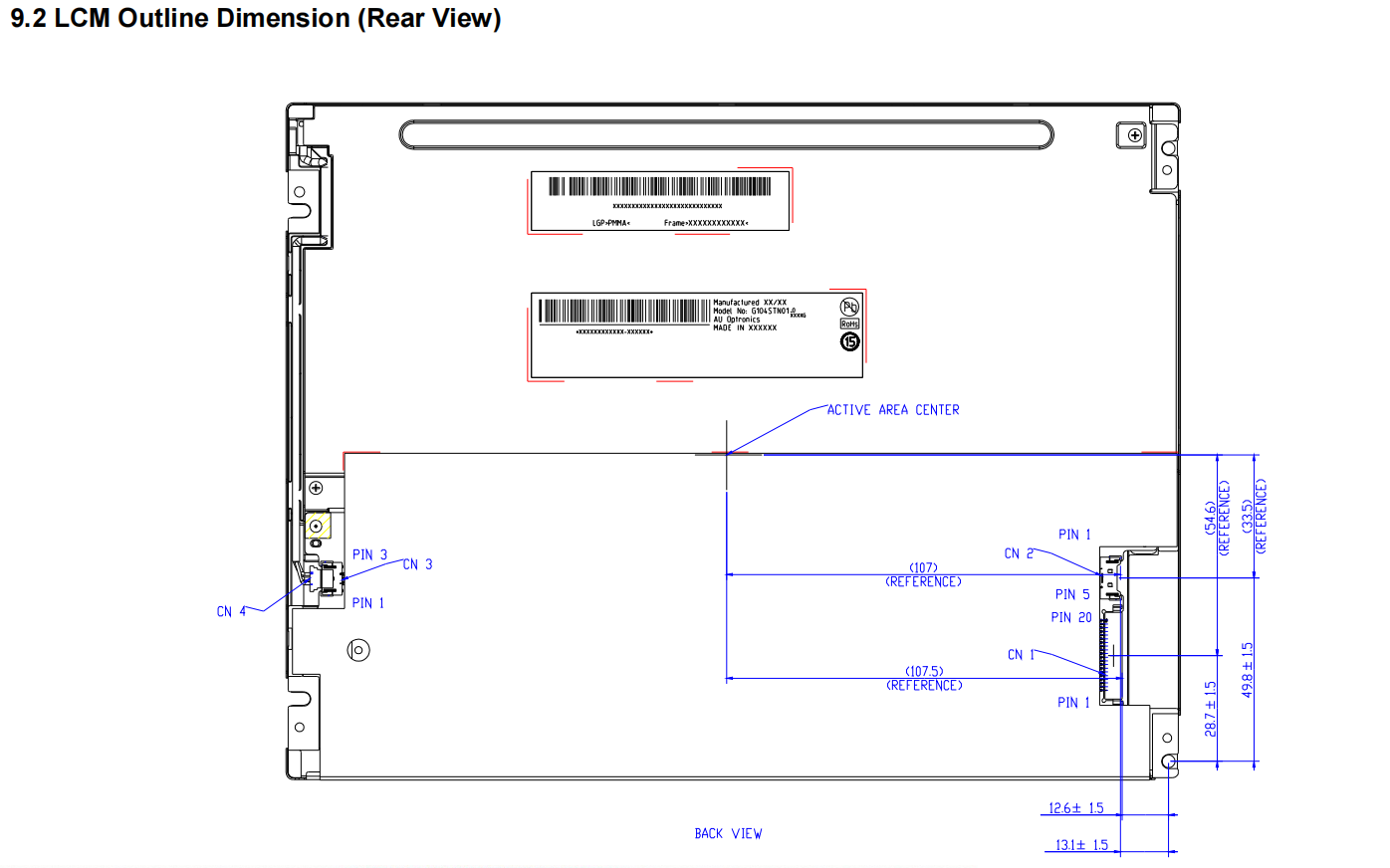

Drawing

10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial

Product Details

10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial

TFT Applications:

This AUO 10.4 inch 800x600 TFT Displays it is recommend that this model be applied to Industrial etc.

10.4 inch AUO 800X600 LVDS TFT LCD Display 400cd/m2 for Industrial
