2 inch 240X320 IPS TFT LCD Module 4 Wire SPI Interface ST7789 Driver IC

Product Categories
Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

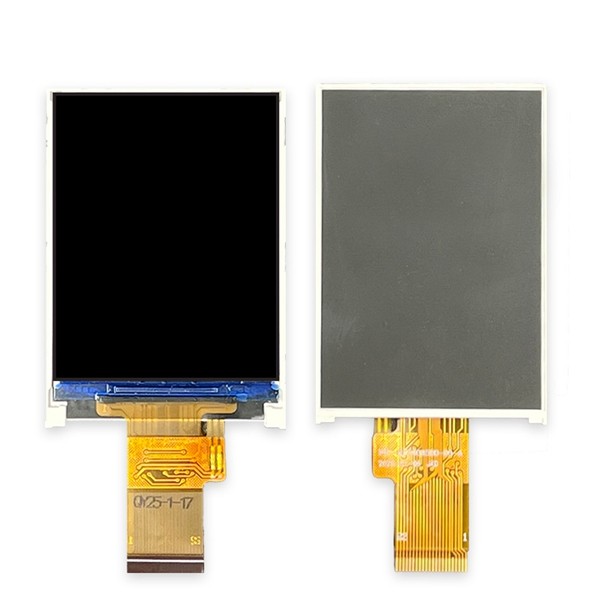

2 inch 240X320 IPS TFT LCD Module 4 Wire SPI Interface ST7789 Driver IC

  • 1
  • 2
  • 3

Brand Name : AISON

Model Number : Z020Q10

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : 3~10usd/pc

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

LCM Type : 2 inch TFT LCD Module

Resolution : 240x320

Module Size : 34.6*47.8*1.9mm

AA Size : 30.6x 40.8mm

Interface : 4 Wire SPI

Brightness : 200 cd/m2

View Direction : ALL

Driver Controller : ST7789V

Working temperatures : -20 to 70 degree

Storage temperatures : -30 to 80 degree

Contact Now

2.4 inch 240X320 TFT LCD Display SPI Interface for Industrial



Display General Description


Z020Q10 is a 2-inch Portrait Mode IPS TFT-LCD with a resolution of 240x320 pixels. Built with ST7789Vdriver IC with 4 wire SPI interface.



Z020Q10 has a wide viewing angle of Left: 80/ Right: 80/ Up: 80/ Down: 80 degree, a contrast ratio of  250:1, a brightness of 200 nits.This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.



The 2-inch portrait mode TFT LCD display is suitable for a wide range of electronic devices, including measurement tools such as laser distance measuring instruments and air quality detectors, as well as testing equipment, sports watches, and other electronic device



General Data

Model Name 2 inch LCD Module
Resolution 240x320
Model Size (W*H*T) 34.6*47.8*1.9mm
Display Area (W*H) 30.6x 40.8mm
Interface 4 Wire SPI
Display Mode Normally Black,Transmissive
Viewing Angles 80/80/80/80
Brightness 200 cd/m2
Pin number 20
Drive IC ST7789V
BACKLIGHT TYPE 3 WHITE LED
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

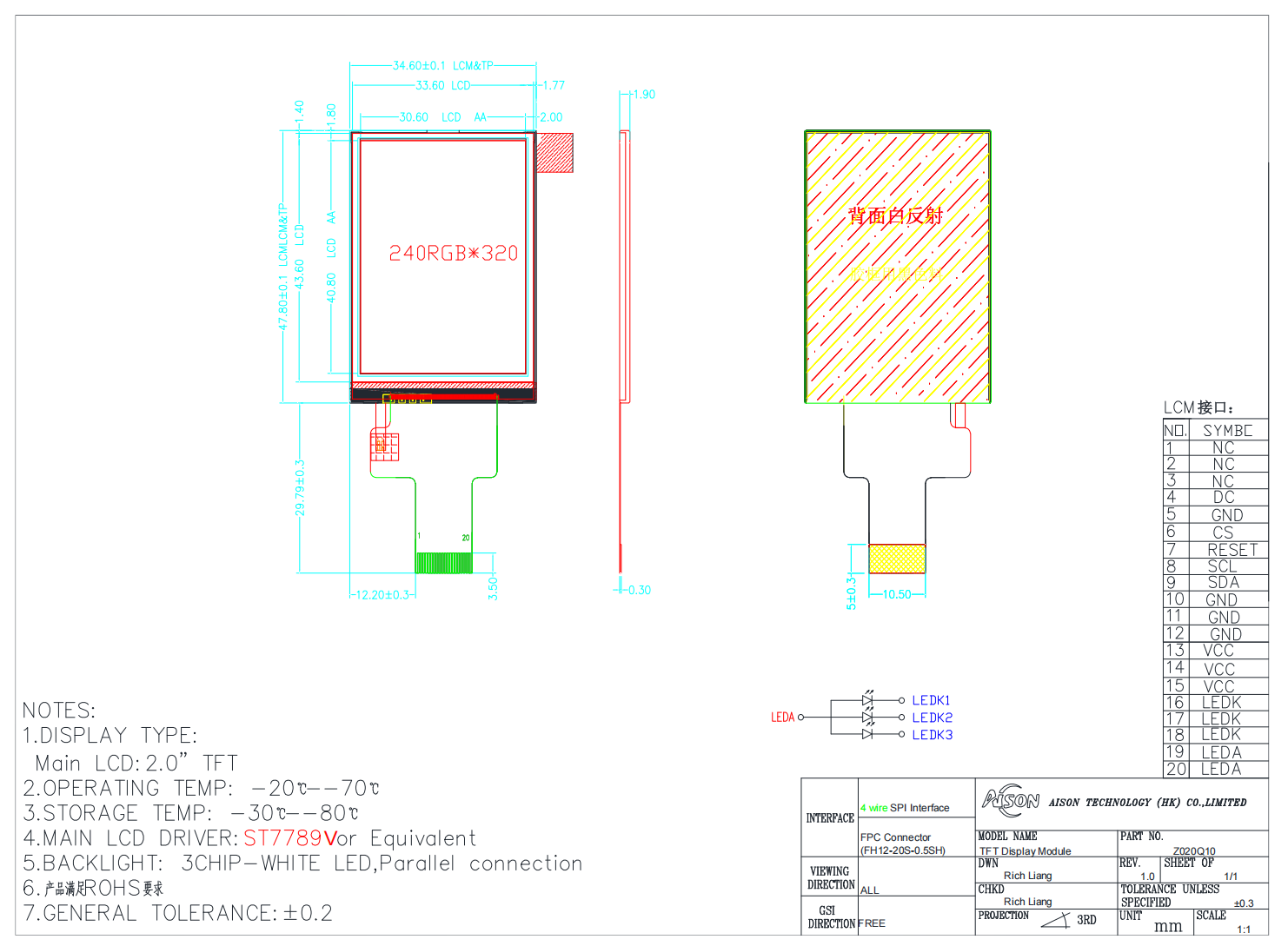

Drawing


2 inch 240X320 IPS TFT LCD Module 4 Wire SPI Interface ST7789 Driver IC



Product Details

2 inch 240X320 IPS TFT LCD Module 4 Wire SPI Interface ST7789 Driver IC



TFT Applications

The 2 inch portrait mode TFT LCD Module is suitable for a wide range of electronic devices, including measurement tools such as laser distance measuring instruments and air quality detectors, as well as testing equipment,
